Steel Pallets

When pallets crack during transit, splinter under repeated loads, or warp in temperature-controlled storage, the real cost is not the pallet - it is the damaged goods, the delayed shipment, and the compliance risk. Steel pallets are designed to remove these variables from the equation. At ESWIRES, the focus is on delivering pallets that perform identically on the first trip and the hundredth trip, so supply chain operators can plan with confidence instead of budgeting around pallet failure.

Model: ES11-11-11
Dimension: 1160L×1160W×150H (mm)
Loading Capacity: 1000 kg
Finish: Powder coating, Zinc galvanized, Hot-dip galvanized
MOQ: 50 sets
Send Inquiry

Product Description Video How to Control the Quality? Why Choose Us?

AMOY E-SOON Metal Manufacture Co.,Ltd is one of the most reliable manufacturers and suppliers of steel pallets in China. Please feel free to wholesale bulk high quality steel pallets from our factory. Customized orders are welcome.



Wood pallets degrade. Plastic pallets soften under heat and grow brittle in cold storage. Both create inconsistencies that ripple through loading schedules, export documentation, and warehouse safety audits.



Metal pallets address these failures at the source. A welded steel deck with a load rating of 1000kg eliminates the guesswork in stacking and racking. The same dimensions, the same flat surface, and the same structural integrity hold across every shipment cycle - no warping, no splintering, no moisture absorption, no pest contamination.



Key operational advantages:

Fire-resistant construction meets the safety requirements of chemical, automotive, and high-density storage facilities

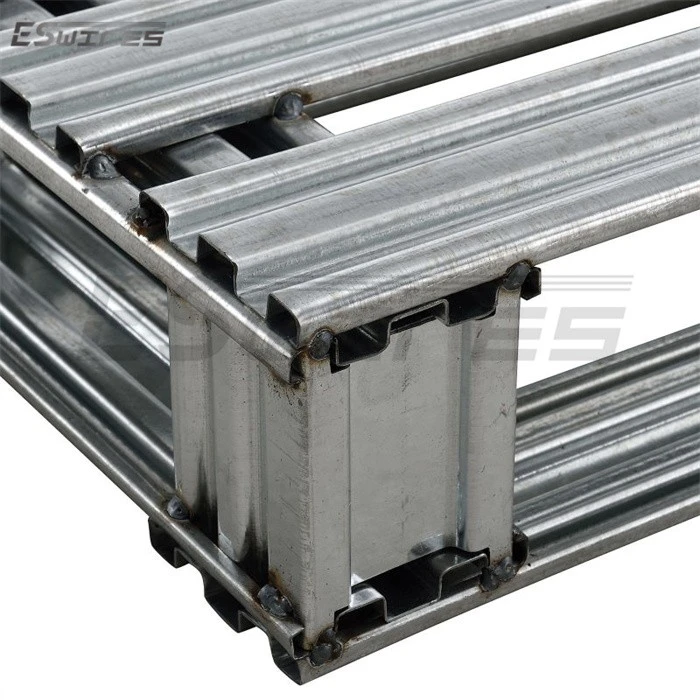

Welded joints maintain structural integrity under repeated forklift impact

Compatible with standard pallet racking, automated storage and retrieval systems (AS/RS), and conveyor lines



benefits



The steel pallets shown below are examples of our previous designs. However, every industry has different storage and handling requirements. ESWIRES can customize pallet dimensions, structures, and functions according to your specific application needs.



similar product



Steel does not absorb moisture, does not host mould or bacteria, and does not lose load-bearing performance when temperatures swing. This makes it suitable for:

Cold chain logistics

Heavy manufacturing

Export shipping and more

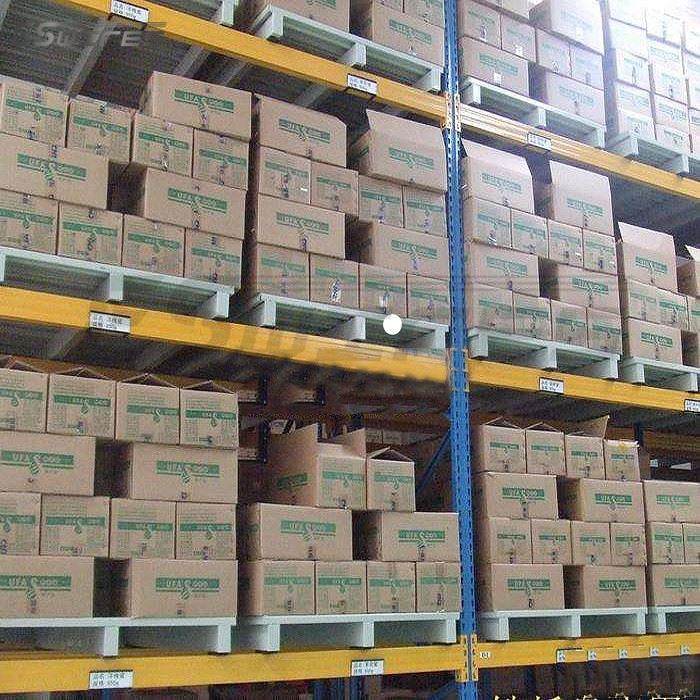

application

Hot Tags: steel pallets, China, suppliers, manufacturers, factory, customized, wholesale, bulk

The production process starts with requirement confirmation, followed by a technical proposal. After drawing approval and sample validation (if required), raw materials are prepared. Fabrication and welding are then carried out, followed by surface treatment, and finally packing and shipment.



Project Workflow 1



The inspection process covers:

Raw material verification - steel grade, thickness, and surface condition checked against order specifications before fabrication begins

Dimensional tolerance checks at cut and press stages to ensure beam and racking compatibility

Weld integrity inspection - each load-bearing joint is visually inspected and sample-tested for penetration and consistency

Load testing on finished steel pallets - random batch samples tested to rated capacity and beyond to confirm safety margins

Surface finish inspection - coating thickness, adhesion, and coverage verified for galvanized and powder-coated options

Final dimensional audit against order specifications before packaging

Documentation is available on request. Clients with their own incoming quality standards can receive test reports, material certificates, and dimensional inspection data.



quality control 2

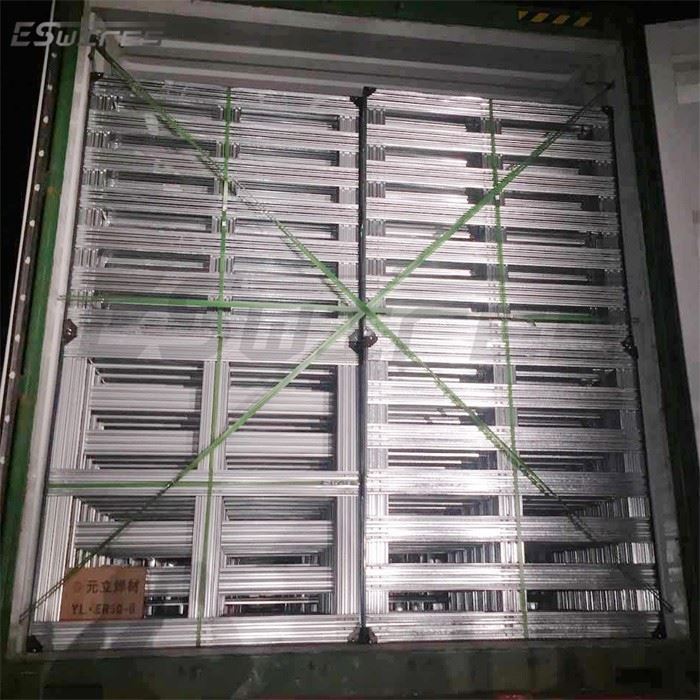

packaging 2

The following feedback is based on real customer experiences.


Customer Testimonials


What is a steel pallet?
