Pallet Converter

Pallet Converter

A standard pallet is built to carry a load on the floor of a truck or a warehouse — not to have another loaded pallet stacked on top of it. That is why many facilities hit a capacity ceiling long before the roof does: loads can be moved, but they cannot be stacked without crushing what sits underneath.

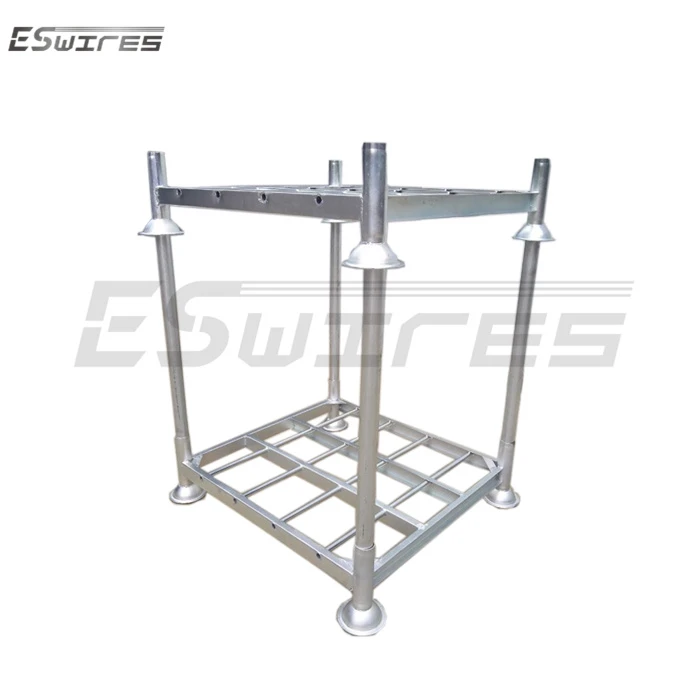

The pallet converter changes that. It is a steel base with posts that turn one pallet load into a self-contained stacking unit. The load sits inside the post, and the post — not the goods below — carries whatever is stacked above.
Pallets gain the ability to stack safely, move by forklift as one handled unit, with no bolted racking and no change to the building.

Model: ES05-001
Base Exterior Dimension: 1395L×1060W×310H mm
Post Exterior Dimension: 1200L×60W×2.5H mm
Loading Capacity: 1500 kg
Stacking: 4 high
Finish: Galvanized
MOQ: 50 sets
Send Inquiry

Product Description Video How to Control the Quality? Why Choose Us?

AMOY E-SOON Metal Manufacture Co.,Ltd is one of the most reliable manufacturers and suppliers of pallet converter in China. Please feel free to wholesale bulk high quality pallet converter from our factory. Customized orders are welcome.



From Single Pallet to Stacking Unit

  • Loaded unit moves as one piece through receiving, storage, and dispatch
  • Stacking force passes through the steel frame, keeping lower loads intact
  • Open frame design keeps goods visible for quick stock checks

What Changes in Day-to-Day Work

  • Vertical stacking turns the airspace above loads into usable capacity
  • Goods stay protected between handling steps, reducing damage and rework
  • Each unit holds a defined load, making counts and zoning predictable



benefits



Customization

The pallet converter is sized to the load profile: base dimensions, post height, and load rating are matched to the goods, and bottom steel plates can be added where small or loose items need a solid floor.



customized



Built Around Pallet-Based Operations

Pallet racks earn their keep wherever palletized loads are stored and moved in volume. Typical settings include:

  • Automotive parts industry
  • Food and beverage raw-material industry
  • Appliance industry and more



application

Hot Tags: pallet converter, China, suppliers, manufacturers, factory, customized, wholesale, bulk

Production Workflow

Each order starts with requirement confirmation and a technical proposal. After drawings are approved and samples validated when needed, manufacturing, welding, surface treatment, packing, and shipment follow.



Project Workflow



Quality Control

Every post pallet is checked at each production stage - raw material, frame dimensions, and stacking performance - before packing.



quality control



packaging



why choose ESWIRES


See how warehouse teams describe running palletized storage with our pallet converter.


Customer Testimonials


Stackable Post Pallet Rack Explained + Assembly Demo.
